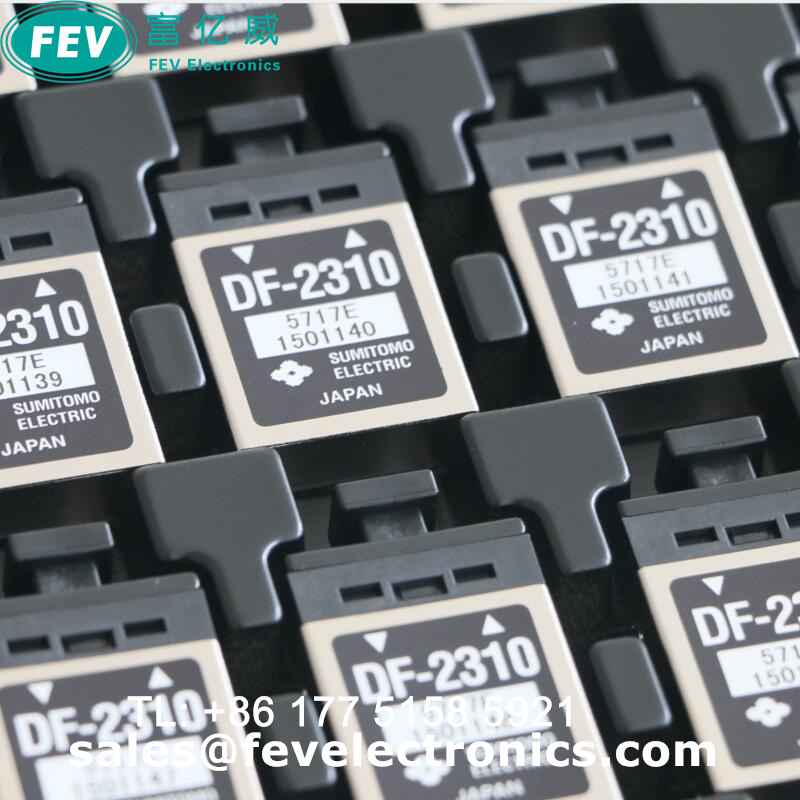

DF-2310 Transmitting and Receiving module PCF HCS Transceivers SUMITOMO ELECTRIC

DF-2310 SUMITOMO ELECTRIC

SKU: DF-2310 SUMITOMO ELECTRIC Categories: Fiber Optic Accessories, Sumitomo H-PCF Fiber Optic Cable

General Details
Transmitting and Receiving module

General Details

DF-2310 Transmitting and Receiving module PCF HCS Transceivers SUMITOMO ELECTRIC

Sumitomo H-PCF is widely used to underpin the social infrastructure and industrial systems, in such applications as inverter motors and power conversion equipment, and factory automation equipment, etc

H-PCF consists of silica core & plastic clad. It offers better performance than all plastic fiber & lower cost than all glass fiber. Easy connectivity and high strength are also key features of H-PCF. H-PCF is widely used for various applications from traffic surveillance cameras, Electric Toll Collection (ETC) to Factory Automation.

DF-2310 Transmitting and Receiving module SUMITOMO ELECTRIC

H-PCF modules

	High-reliability type (Can packaging/ceramic packaging)
Transmitting module	DF-2310
Transmitting module
Receiving module
Peak emission frequency	870nm
Transmission speed(NRZ)	DC to 4Mbps
Applicable fiber	HC
Applicable optical connector?	F07
Dynamic range	11dB
Transmission distance	1000m
Storage temperature	-40 to 85C°
Operating temperature	-25 to 75C°
Power consumption	80ｍA
Package	Can
Remarks	TTL interface, +5 V single power source

Contact Information:
Email: sales@fevelectronics.com
C.C.: fevelectronics@gmail.com
TEL: +86 177 5158 5921 (Available for WhatsApp, WeChat)
Website: https://www.tocpfibercable.com | https://www.fevelectronics.com

Transmitting and Receiving module

Types of H-PCF fibers Transmitting and Receiving module

	Standard type
Category	Standard SI type	GI type for high-speed transmission
Fiber type	HC/HR(a)	HG(R)
Refraction-index profile
Core material	Silica glass	Ge-doped silica glass
Core diameter	200μｍ
Cladding material	Fluoroacryrate
Clad diameter	230μｍ
NA	0.46/0.37	0.43
Attenuation	5～7	TBD
Bandwidth	–	50MHz/km
Applications	General industry, FA	High-speed FA

H-PCF cords

Cord type	Simplex cord	Zip cord
Schematic drawing
Outer diameter	2.2	2.2×4.4
Connector	ＣＦ-1071,1571	CF-1071,1571,2071

H-PCF cables (In the table below, the duplex-type cables are shown as examples.)

	Standard type	Simple type	Flexible type	Nonmetallic type
Inside a control board	Cord	–	–	–
Indoor *2	2-C-V	2-IB-V　*1	2-C-VCT	NM2-C-V
Indoor *2
Outdoor	2-C-LAP	–	–	–
Outdoor		–	–	–
Characteristics	–	–	Highly flexible	No metal included
Connectors	CF-1071,1571, 2071	CF-2071TE	CF-1071,1571,2071

	Flame-retardant type	Overhead type	Underground type
Inside a control board	–	–	–
Indoor *2	SF2-C-LAP	–	–
Indoor *2		–	–
Outdoor	SF2-C-LAP	2-C-LAP-SSD	2-C-LAP-MAZE
Outdoor
Characteristics	Flame resistant	With messenger wire	With metal armored cable
Connectors	CF-1071,1571, 2071	CF-1071,1571,2071

*1：	In cases where cable length needs to be 200 m or more, or if a great tension will be applied to the cable during laying, such as when pulling the cable with a winch, use a multi-type optical fiber cable with center tension member .
*2：	A LAP-sheathed cable must be used even for indoor use if a cable is anticipated to be soaked or immersed in water.

H-PCF modules

	High-reliability type (Can packaging/ceramic packaging)
Transmitting module	DF-2310
Transmitting module
Receiving module
Peak emission frequency	870nm
Transmission speed(NRZ)	DC to 4Mbps
Applicable fiber	HC
Applicable optical connector?	F07
Dynamic range	11dB
Transmission distance	1000m
Storage temperature	-40 to 85C°
Operating temperature	-25 to 75C°
Power consumption	80ｍA
Package	Can
Remarks	TTL interface, +5 V single power source

H-PCF connectors and tools

(1) Crimp & cleave optical connector (for on-site assembly)
Applicable size	JIS F05	JIS F07		JISF08

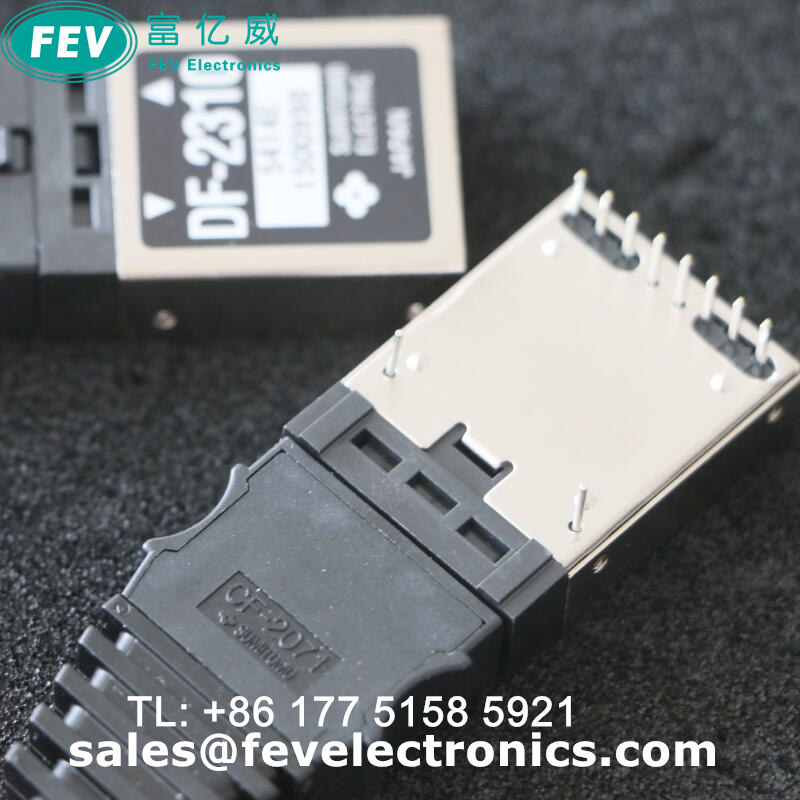

Connectors	CF-1071	CF-2071		–

	CF-1571		–	–

Tool	CAK-0057-EX			–
				–
Link	DF-1700、1800	DF-2310、2700,2800,2900		–
Reference fiber	CAT-1001H	CAT-2001H		–
Inline adaptor		IAT-4000 *1		–
				–

*1：	With an inline adaptor inserted, transmission distance is shortened.

(2) Glue & polish connectors (for factory preassembly)
Applicable size	JIS F05	JIS F07		JISF08
Connectors	CF-1001H	CF-2071H	CF-2071TE*2	–
				–
	CF-1501H		–	–
			–	–
	–	CF-2001H	–	–
Tool	–	–	–	–
Link	DF-1700、1800	DF-2310、2700,2800,2900		–
Reference fiber	CAT-1001H	CAT-2001H		–
Inline adaptor		IAT-4000 *1		–
Inline adaptor				–

*1：	With an inline adaptor inserted, transmission distance is shortened.
*2：	The CF-2071TE is a crimp & polish-type connector.
