We design and produce coaxial cable with IEC / 9.5TV / PAL / F Connectors such as Class A++(105 dB), CLASS A+(95 dB), CLASS A (85 dB), Class B(75 dB) TV cable, Antenna cable and RG6 / 3C-2V/ RG59 screening shielded coaxial cables accord to European Standards EN 50117-2-5 Coaxial cables.
IEC SCREENING SHIELDED ANTENNA CABLE MALE TO FEMALE CLASS A++ 105DB
IEC SCREENING ATTENUATION ANTENNA CABLE MALE TO FEMALE CLASS A++ 105DB FEV10-2018
General Details
IEC SCREENING ATTENUATION ANTENNA CABLE MALE TO FEMALE CLASS A++ 105DB
Coax Cable | IEC Male + IEC Female – Straight | White | Class A++
The screening effectiveness of a fly lead therefore needs to mitigate the effects of both the egress and ingress of unwanted signals. To meet these requirements, the RF specification of the fly leads exhibits low insertion loss, high return loss and exceeds Class A++ screening effectiveness over the whole frequency range, using quadruple shielding with a mix of braids and foils.
TV antenna cable (105 dB), 4x shielded, gold or nickel plated, Coaxial female > Coaxial male
ideal for high-resolution transmissions (HDTV, Full HD, Ultra HD (UHD/4K and higher)) for digital signals such as DVB-T and DVB-T2, radio (UKW/DAB/DAB+) and cable television, DVB-C and DVB-C2 (analogue/digital SD/digital HD). Reliable connection between the wall outlet and the receiving device, such as a TV/receiver (Sky receiver) and radio.
IEC SCREENING ATTENUATION ANTENNA CABLE MALE TO FEMALE CLASS A++ 105DB
- inner conductor made of ultrapure OFC solid copper for optimal conductive and transmission properties, ensuring virtually loss-free signal routing
- 4-layer, ultrathick shielding material (made of ultrathick 2-layer mesh and 2-layer film) with 105 dB shielding capability
- the perfect balance of shielding and flexibility – the ideal shielding for ensuring perfect reception and disruption-free transmission
- massive solid metal connector with gold-plated contacts – for optimal durability, stability and precision
- optimised bend protection and flexible cable sleeving prevent the maximum bending radius from being exceeded
coaxial cable with IEC TV F full shielded coax connectors for screening attenuation class A++ A+ A B antenna cable
CLASS A A+ A++ BEDEA CoMet Screening Effectiveness test equipment
Test report of CLASS A++ (105DB) screening attenuation coaxial antenna cable.
Test Result for CLASS A++ Screening coax antenna cable
TEST EQUPEMENT

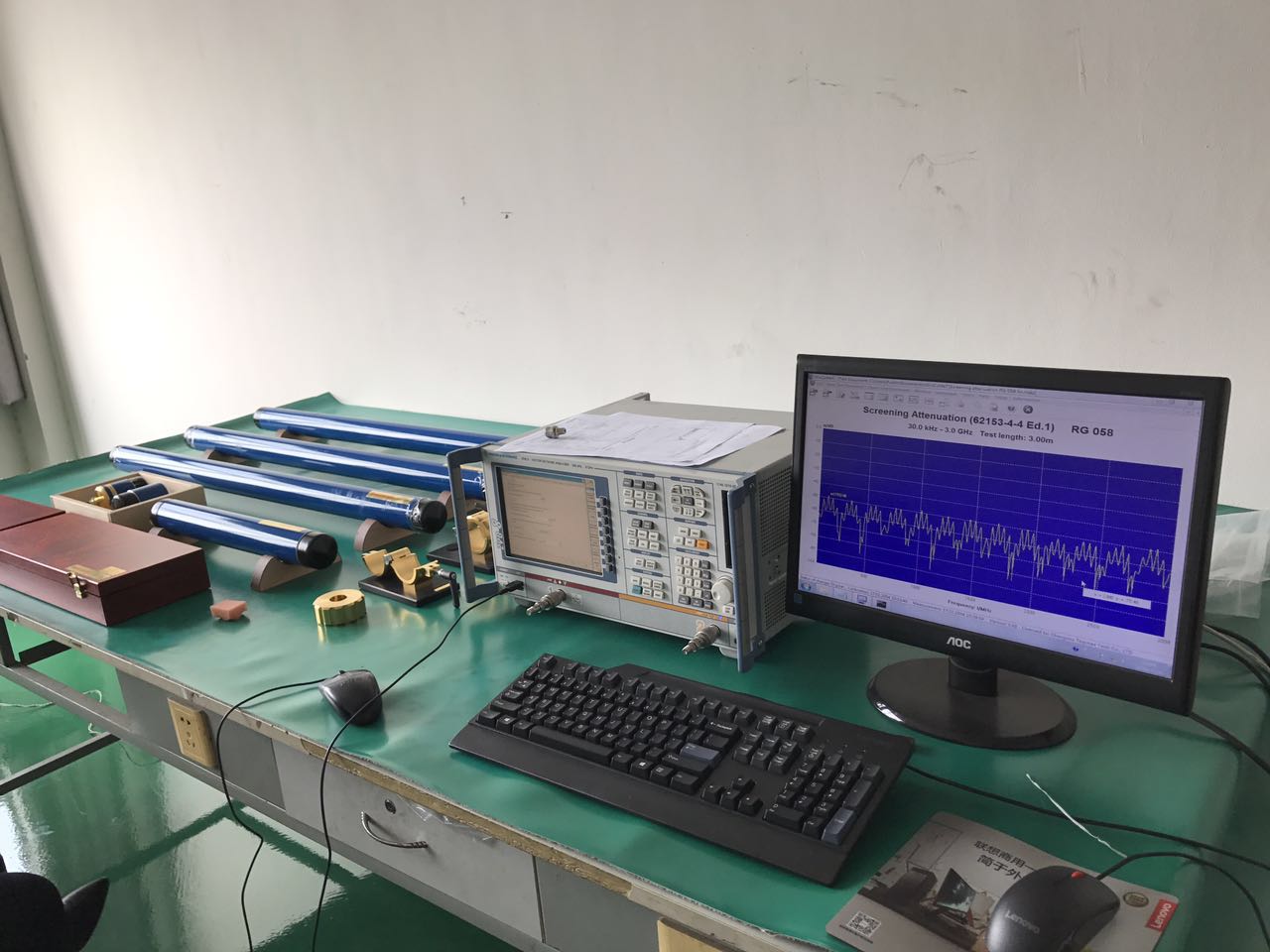

RF COAX ANTENNA CABLE SCREENING SHIELDED ANTENNA CABLE CLASS A, CLASS A+, CLASS A++ BEDEA CoMet Screening Effectiveness test equipment
CLASS A A+ A++ BEDEA CoMet Screening Effectiveness test equipment.
MORE IMAGES
More images to show details of the screening effectiveness coax antenna cables:

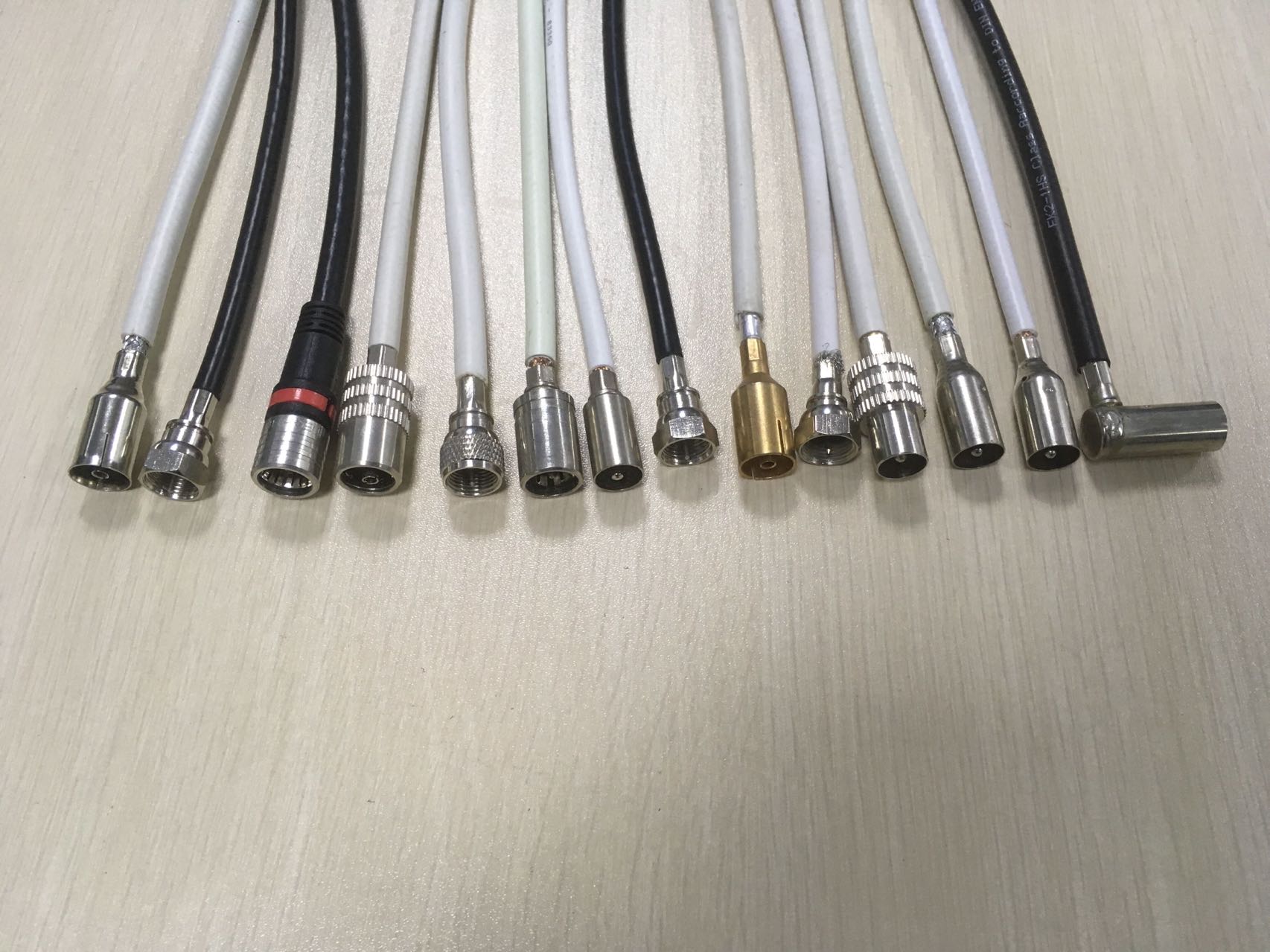

Coax Cable with full shielded IEC Male Female TV F-Compression coax connectors

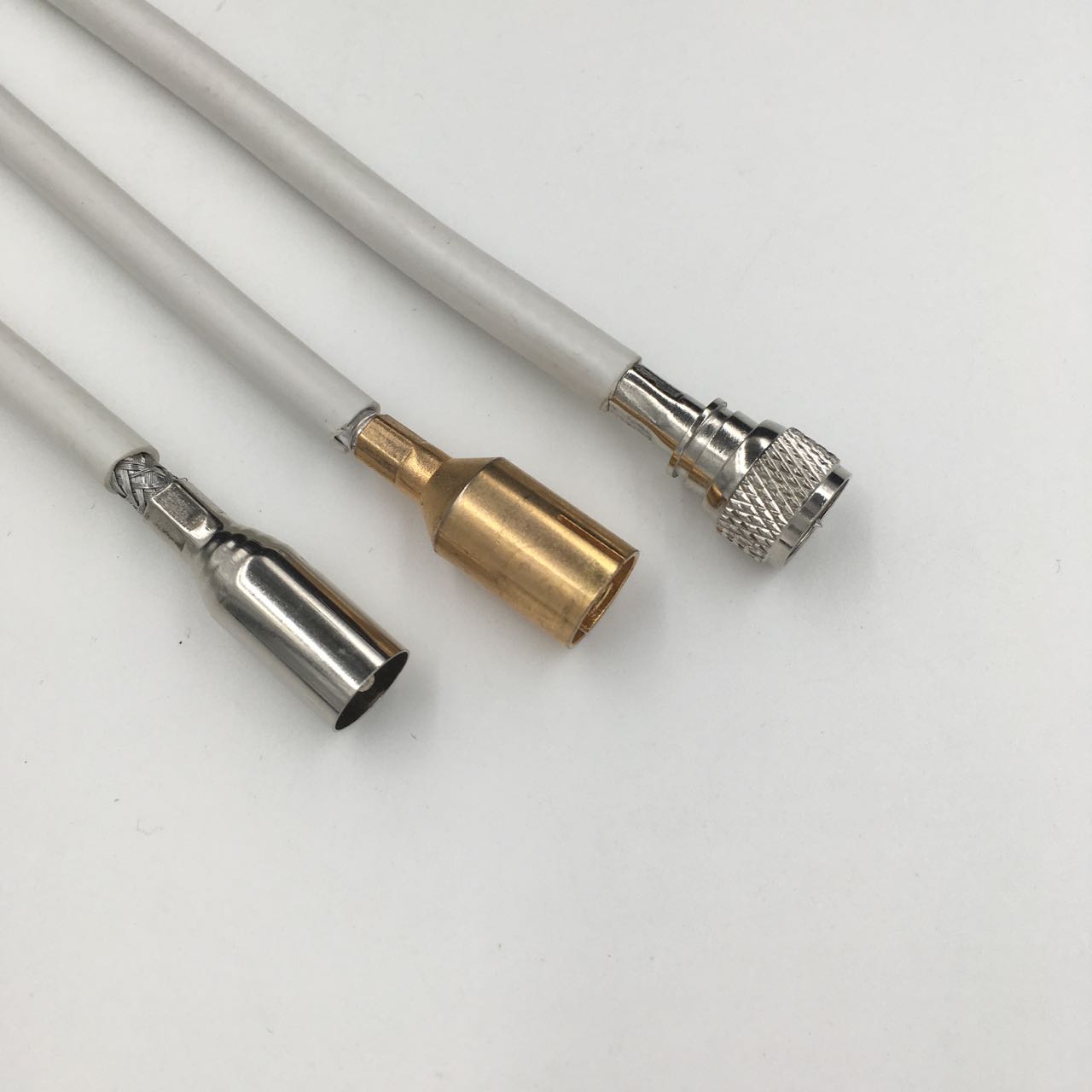

coaxial cable with IEC TV F full shielded coax connectors for screening attenuation class A++ A+ A B antenna cable

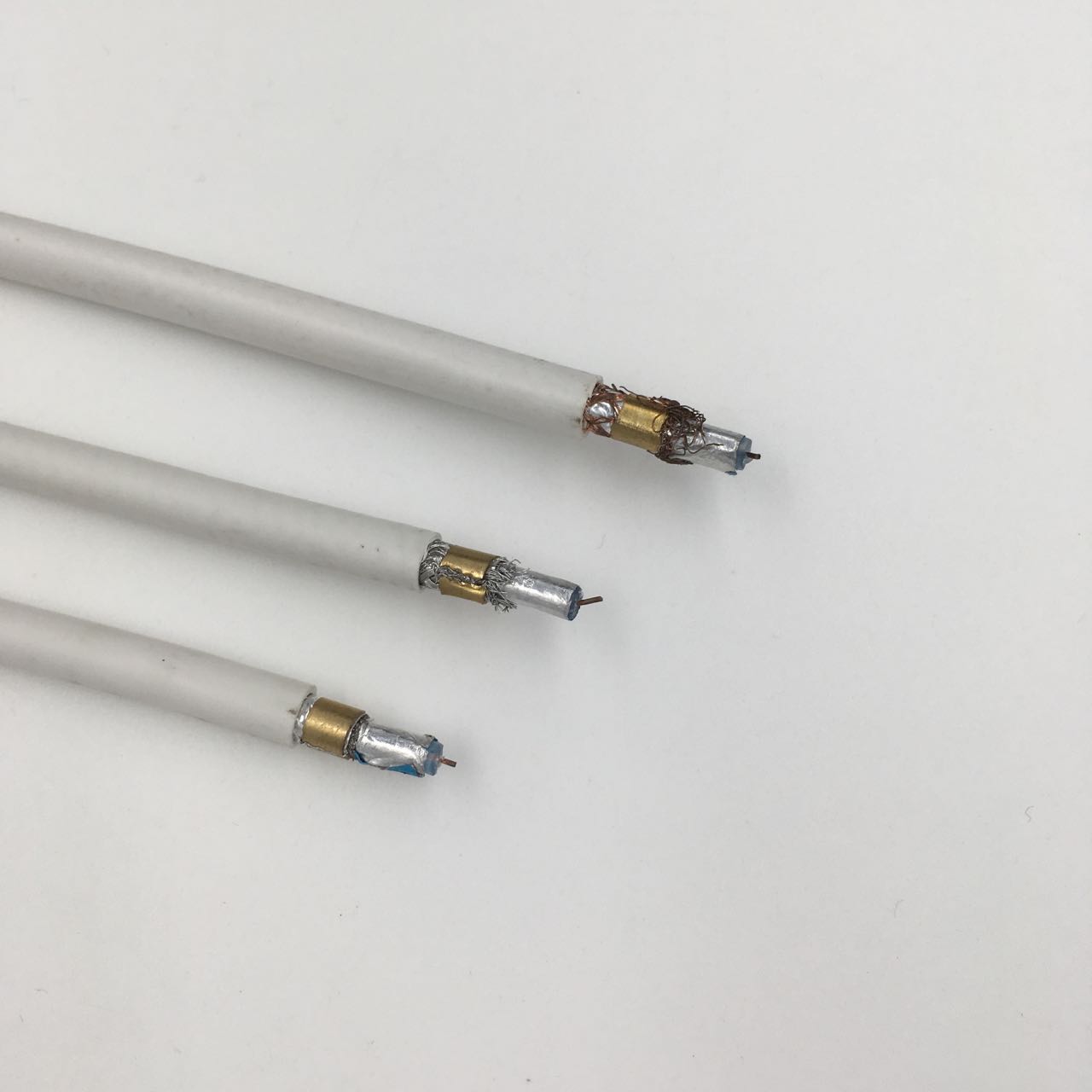

Treament of coax cable for screening effectiveness coax antenna cable
Test Result for CLASS A++ Screening coax antenna cable
TEST REPORT
Test report of CLASS A++ (105DB) screening attenuation coaxial antenna cable.
Test Result for CLASS A++ Screening coax antenna cable
Test Result for CLASS A++ Screening coax antenna cable
