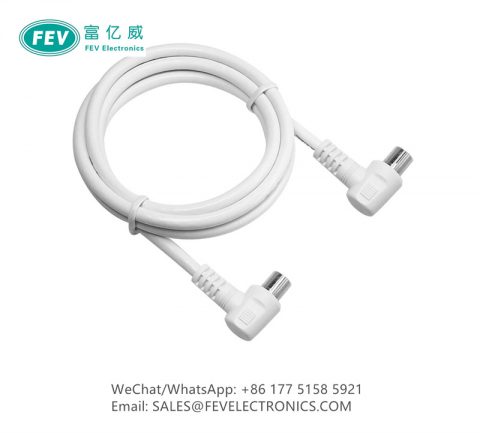

IEC Screening Antenna Cable 9.5MM PAL MALE TO MALE CLASS A COAX CABLE 75DB

IEC Screening Antenna Cable 9.5MM PAL MALE TO MALE Lead CLASS A 75DB FEV10-2017

RF Antenna shielded screening coax cable for connecting your HD-TV. Quad shielded to prevent interference from electronic devices gives you a clear tv-picture.

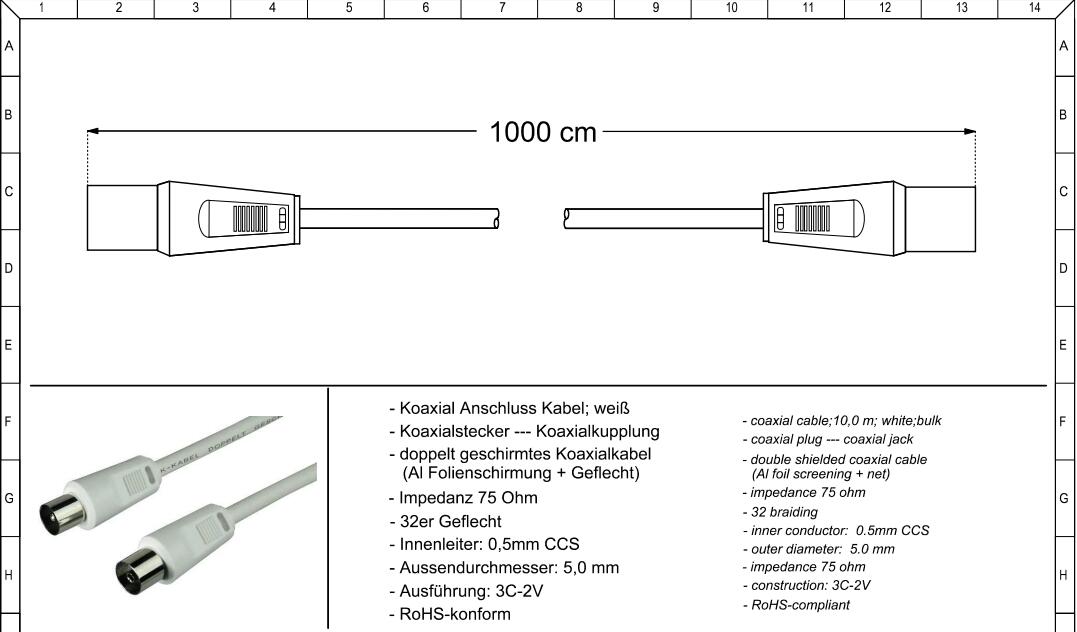

Antenna cable (75 dB, CLASS A), 2 x shielded coaxial cable.

• double shielded coaxial cable
• encapsulated unshielded plug on both sides, protection against dust, dirt and mechanical loads
• nickel plated contacts

CONSTRUCTION:
Jacket – material PVC
Jacket – dimension 5.0 mm

OPERATIONAL:
Screening Efficiency EN50117 (Class A++)

SHIELDING:
Screening attenuation @ 30-1000 MHz > 105 dB

LOSS:
Attenuation (20°C/100mtr) @ 50 MHz 6.6 dB
Attenuation (20°C/100mtr) @ 1000 MHz 34.3 dB

ELECTRICAL:
Impedance 75 Ω

CONNECTORS:
Connector Type IEC-male / IEC-female

IEC Screening Antenna Cable 9.5MM PAL MALE TO MALE CLASS A 75DB FEV10-2017
