Optical fiber cable for CC-Link IE controller network JINSHANG TECH
Model name: QG-AW (For inside of the panel)
Model name: QG-B (For indoor)
Model name: QG-BU (UL certified for indoor)
Model name: QG-VCT (For indoor movable part)
Model name: QG-C (For outdoor)
Model name: QG-DL (For outdoor reinforced type)

Optical fiber cable for CC-Link IE controller network JINSHANG TECH

CC LINK CONTROLLER OPTIC FIBER CABLE

QG-G50-2C-2M-AW-LL Fiber Optic Cable by MITSUBISHI
Since we have a rich lineup such as for inside for the panel, indoor use, outdoor use, and outdoor reinforcement type, it can correspond to various environments.
Features
■It is an optical fiber cable that passed the CC-Link Partner Association recommended product test. Please use the cables with confidence.
■Since we have a rich line-up such as inside of the panel use, indoor use, outdoor use, and outdoor reinforced type, it can correspond to various environments.
■For indoor and outdoor cables, by adopting a small diameter cables or collective structure cables, it can be used in a narrow installation environment of the factory at ease.
■The cables for indoor use and outdoor use can be towed directly because they have the same allowable tension as the outdoor reinforced type without tension member.
■The indoor UL certified cable (OG-BU) is UL Listed (UL OFNR) compliant cable with a high flame retardant and passed UL 1666 (Riser Cable Fire Test).
■Cable for indoor movable part can be used at the movable parts which need repetitive action.
■Cables for outdoor reinforced Type have waterproof property and can withstand flooding and temporary submersion.
■By attaching the supplied protective holder, it is possible to prevent breakage at the base of the connector and save space inside the panel.
■By connector boot with enhanced bending characteristic, disconnection at the base of the connector will be reduced.
■We manufacture in 1 m increments according to customer specified dimensions.
Standard accessories
Protective holder
(included one holder per cable)
・Protection and prevention of breakage at the base of the
connector
・Maintain minimum bending radius
・Space saving inside the control panel (60 mm or less from the front of the sequencer to the end of the protection holder)
Applicable connector : LCF connector
Caution:
The protective holder is exclusively for our LFC connector and cannot be sold the holder alone.
Moreover, it can not attach to other company’s LCFconnector.
Connection model list
Network name | Connection model | ||
---|---|---|---|
CC-Link IE controller network |
Sequencer (PLC) | iQ-R series | RJ71GP21-SX |
Q series | QJ71GP21-SX | ||
QJ71GP21S-SX | |||
Interface board for PC | Q81BD-J71GP21-SX | ||
Q81BD-J71GP21S-SX | |||
Q80BD-J71GP21-SX | |||
Q80BD-J71GP21S-SX | |||
ECP-CLECBD | |||
ECP-CLECBDS | |||
GOT | Communication unit | GT15-J71GP23-SX |
Specification
Items | QG-AW | QG-B | QG-BU | QG-VCT | QG-C | QG-DL | |||
---|---|---|---|---|---|---|---|---|---|
Usage environment/ use |
In the panel | Indoor | UL-certified products for indoor use | Indoor movable part | Outdoor | Reinforced type for outdoor use (water shielding) | |||
Maximum cable length | Maximum 550 m | ||||||||
Optical fiber types | Multi-mode optical fiber (GI) | ||||||||
Transmission loss | 3.0 dB/km or less [λ = 850 nm]/1.0 dB/km or less [λ = 1300 nm] | ||||||||
Transmission band | 500 MHz・km or more [λ = 850 nm]/500 MHz・km or more [λ =1300 nm] | ||||||||
Standard | In accordance with IEC60793-2-10 A1a.1 |
In accordance with IEC60793-2-10 A1a.1 UL1651 (UL TYPE OFNR) | In accordance with IEC60793-2-10 A1a.1 | ||||||
Material/ outside diameter |
Core | Quartz glass/50 ± 3 μm | |||||||
Cladding | Quartz glass/125 ± 2 μm | ||||||||
Inner jacket | PVC (Orange)/ φ2.0mm×2 |
PVC (Orange)/ φ2.0mm |
PVC (Orange)/ φ1.8mm |
PVC (Orange)/ φ2.0mm |
PVC (Orange)/φ2.0mm | ||||
Outer jacket |
– | Flameretardant PE(Orange)/φ6.0 mm |
Flame-retardant PVC (Blue)/φ5.0 mm |
Elastic PVC(Orange)/φ6.0 mm | Flame-retardant PE(Black)/φ6.0 mm | LAP sheath (Black) 10.0 mm (2, 4 cores)/11.0 mm (6 cores)/ 12.0 mm (8 cores) |
|||
Allowable tension | 60 N or less | 420N or less | 2cores | 4cores | 6 cores/ 8 cores |
||||
420N or less | 540N or less | 780N or less | |||||||
Allowable bending radius | Not less than 15mm*1 | Not less than 60mm*1 | Not less than 60mm*2 |
Not less than 60mm*1 |
2 cores/ 4 cores |
6cores | 8cores | ||
Not less than 100mm*1 |
Not less than 110mm*1 |
Not less than 120mm*1 |
|||||||
Bending performance | – | 10 million times No disconnection*3 (Bending radius:60 mm point) |
– | ||||||
Approximate weight | 8kg/km | 35kg/km | 20kg/km | 30kg/km | 35kg/km | 2 cores/ 4 cores |
6 cores | 8 cores | |
75 kg/km | 100kg/km | 120kg/km | |||||||
Service temperature range | -20 to 60℃ | ||||||||
Connector for use | LCF connector (Duplex LC connector)*4/SC connector/FC connector |
*1.It is the bending radius when the cable is fixed (no load).
*2.It is the bending radius under no load. Please note that the code portion can not be used in the movable part.
*3.It is a test result, not a guaranteed value. (The Performance varies depending on the usage environment of the customer.)
*4.When connecting to CC-Link IE Controller network products, the LCF connector is used.
When laying optical fiber cables compatible with CC-Link IE controller network, please refer to the installation manual issued by the CC-Link Partner Association.

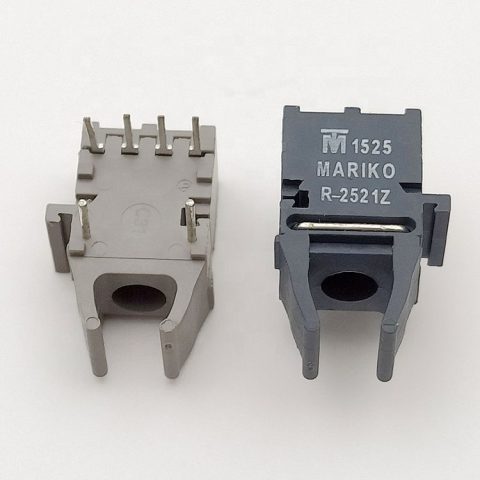

MARIKO HFBR1521Z – HFBR2521Z Filter Plastic Optical Fiber Transceiver For Solar Power Generation
MARIKO HFBR1521Z - HFBR2521Z Filter Plastic Optical Fiber Transceiver For Solar Power Generation

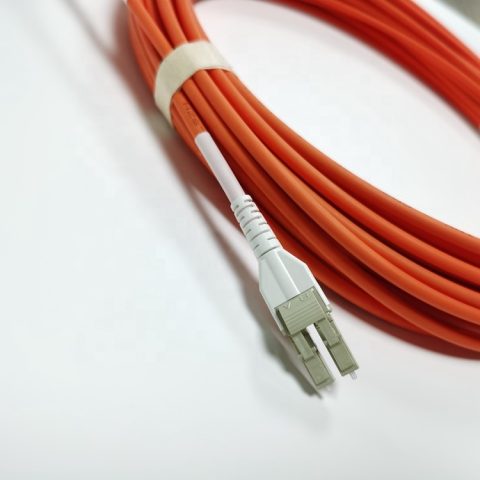

CC LINK Industrial Jumper Optical Fiber Cable Controllere patch cord QG-G50-2C-B-LL
CC LINK QG-G50-2C-B-LL Industrial Jumper Optical Fiber Cable Industrial patch cord

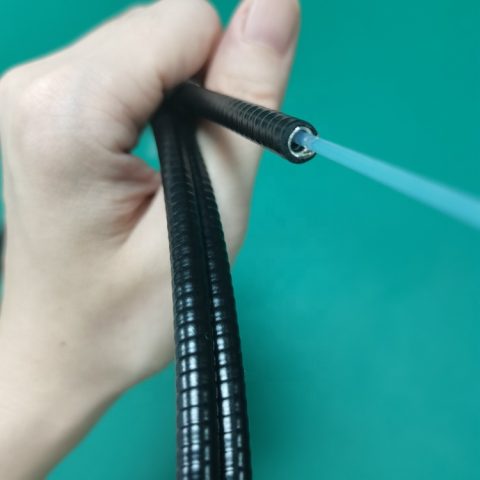

Laser fiber for hair removal 1500 micron with coating 755nm
