Reflective FD-45G-8-core fiber patch cord for sensing

Reflective FD-45G fiber patch cord for sensing, listed as 8-core — 650 nm, PMMA fiber, 0.5 NA, rated -20 to +70 °C. Note the 8-core claim has no photo or text to back it.

SKU: FD-45G-8-core Category:
General Details

The FD-45G is listed as a reflective fiber patch cord for sensing, with 8 cores in the title. The specification lines give a 650 nm transmission wavelength, PMMA fiber, 0.5 NA, and a -20 to +70 °C operating temperature, with ISO9001, ROHS and CE certification. Length is listed as 1 m with custom lengths available.

Reflective sensing cords work by sending light down one path and reading what comes back, so the core count matters — it decides how the cord connects to the sensor head. That is why the note below is worth reading before you order.

Key details

  • Model: FD-45G-8-core
  • Type: reflective fiber patch cord for sensing
  • Fiber: PMMA; transmission wavelength 650 nm; 0.5 NA
  • Operating temperature: -20 to +70 °C
  • Length: 1 m listed; custom lengths available — confirm before ordering
  • Certification: ISO9001, ROHS, CE

Please read before ordering

The title says 8-core, but nothing on the page shows or describes 8 cores — there is no photograph of this product at all (the only body image is a generic “OPTIC FIBER PATCH CORDS” banner shared with the FD-66 listing), and the specification lines do not mention a core count. The category is also GOF Fiber Jumper while the fiber material is given as PMMA, which is plastic, not glass — those two do not line up either. If the 8-core construction or the fiber type matters to your sensor, confirm both with us before ordering.

Related: Reflective FD-66 dual-core fiber jumper, FT-49 single-core fiber jumper, New sensor jumper fiber optic cable. More fiber cable options are listed on TOCP Fiber Cable.

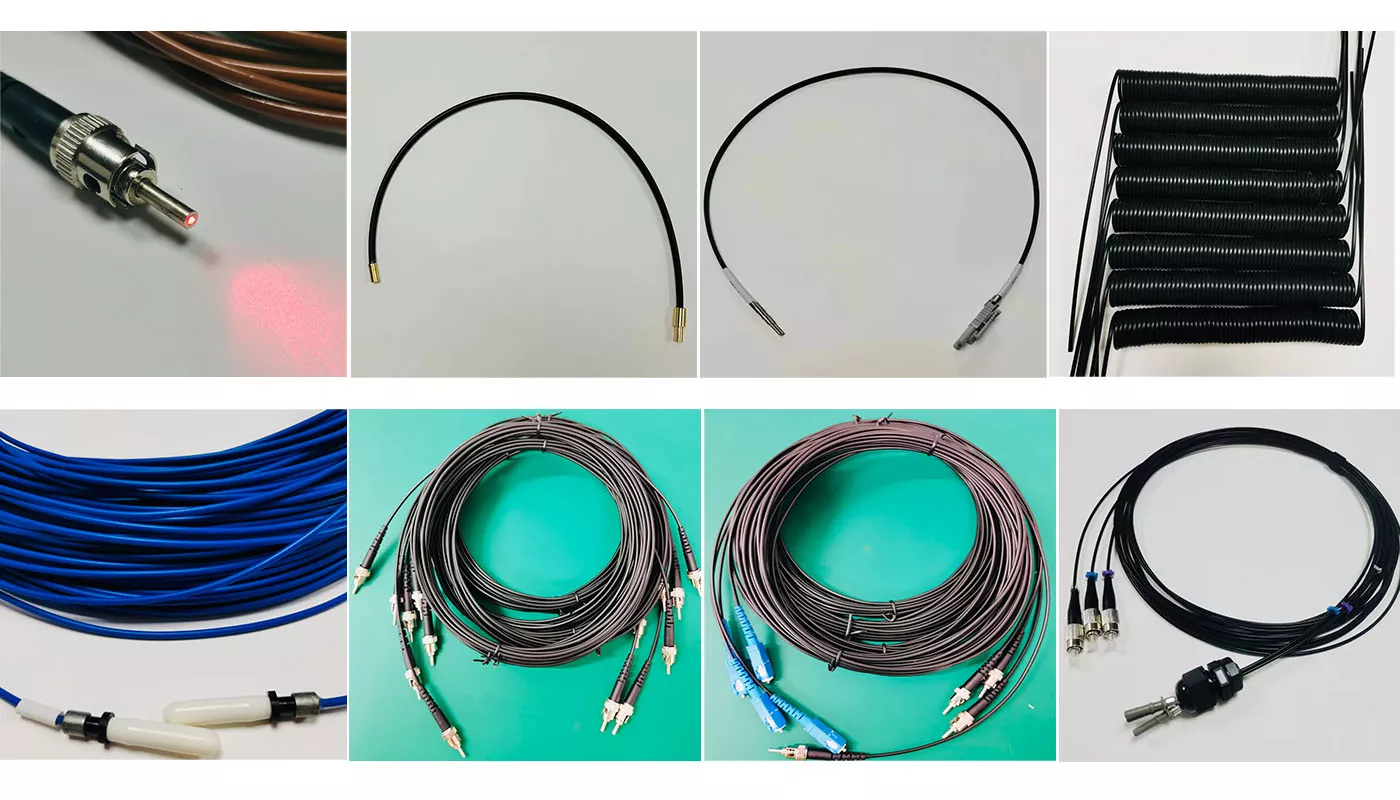

OPTIC FIBER PATCH CORDS, OPTICAL FIBER JUMPER CABLES
