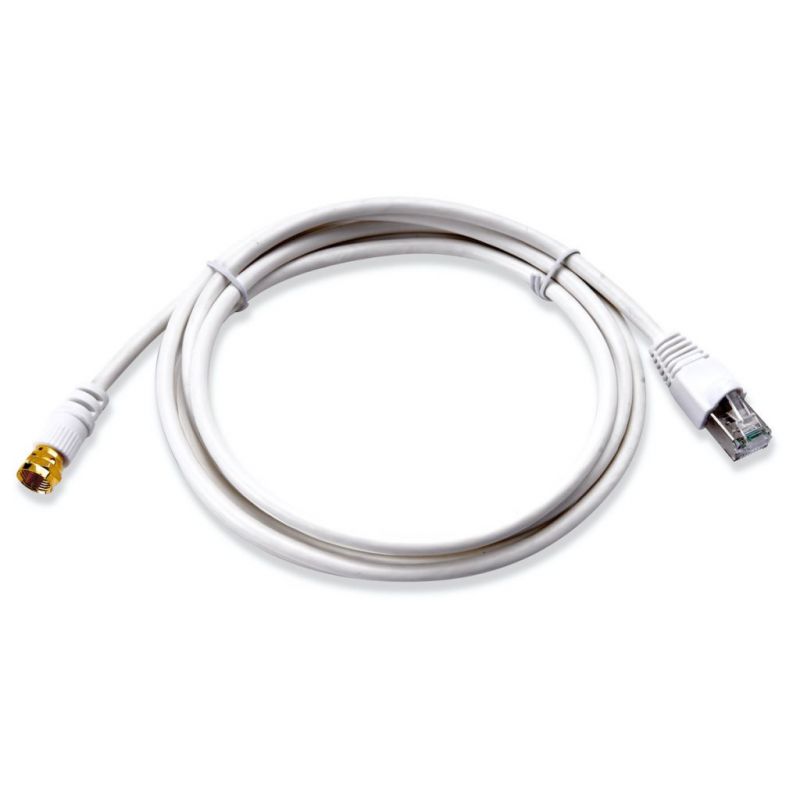

F male connector 75ohm Coax Cable to Cat5 RJ45 Balun Satellite Converter Adapter Cable, RJ45 to type F (9.5TV or IEC)
F male connector 75ohm Coax Cable to Cat5 RJ45 Balun Satellite Converter Adapter Cable, RJ45 to type F (9.5TV or IEC)
F male connector 75ohm Coax Cable to Cat5 RJ45 Balun Satellite Converter Adapter Cable, RJ45 to type F (9.5TV or IEC)
75ohm Coax Cable to Cat5 RJ45 Extender Balun Converter Adapter Sender & Receiver
SPECIALTY FEV-BL1002 COAX over CAT5e/6 EXTENDERS
The CAT5e/6 Extender with built in RJ45 with 2M RG6 coax cable allows traditional 75-ohm coaxial cable to be replaced by a single Cat5e/6 UTP cable. Used in pairs, it allows broadband CATV equipment to be integrated into structured cabling systems thereby allowing CATV equipment to be moved or added to any convenient modular wall outlet. It provides a versatile cabling solution for broadband video systems used by offices, schools, government, hospitals, hotels, even private homes. This F Male Connector to RJ45 Male Connector cable works in conjunction with CATV splitters, amplifiers and cable modems for a total cabling solution.
F Male to RJ45 Adapter Cable Extender Features
- To send broadband CATV, VHF, VHF and FM signal over CAT5e cable.
- Shielded RJ45 male with 2M RG6 coax cable.
- Passive type, no external power required.
- Support bandwidth 40Mhz to 2.4Ghz.
- Distance up to 30M at 2.4Ghz frequency.
- Max. distance up to 100M / 328ft based on low frequency.
- Work with CATV, satellite receivers, RF splitter and amplifier.
- Package includes 2 units/a pair.

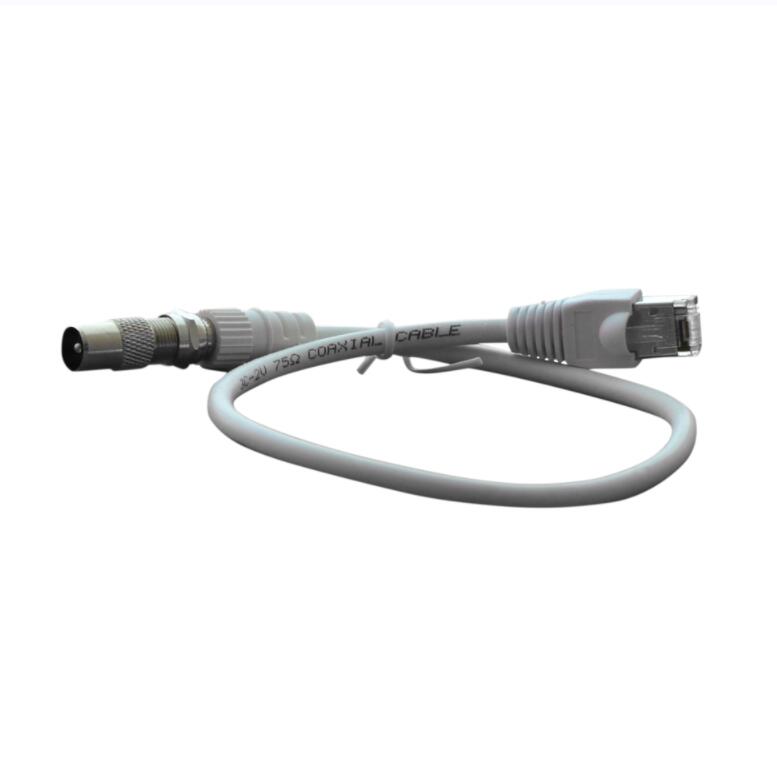

F Male Connector RF to RJ45 Balun Adapter Coax Cable with F to IEC Adapter

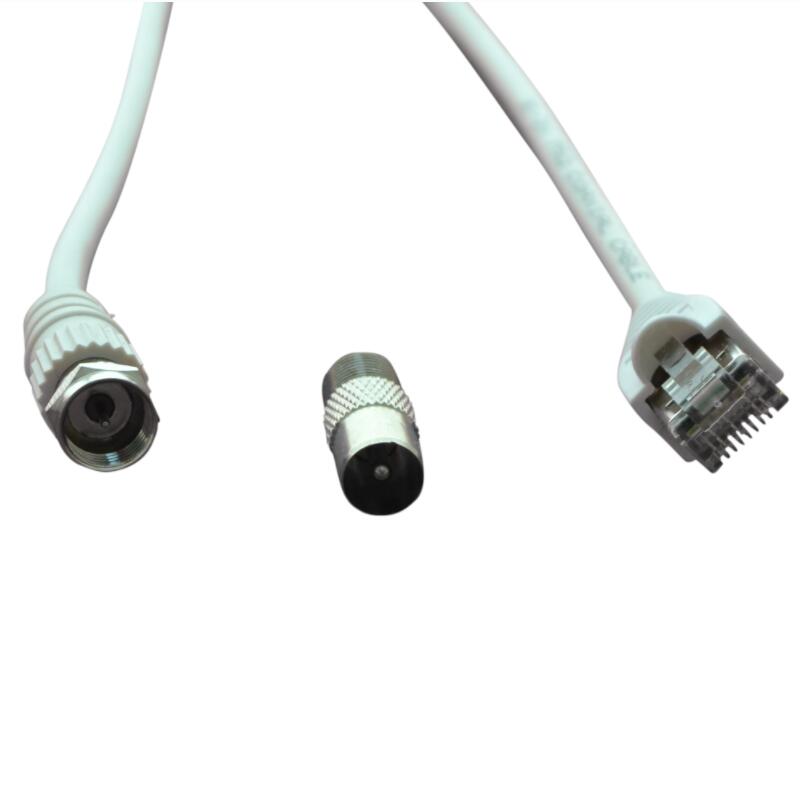

F Male RF Connector to RJ45 CAT5 CAT6 Ethernet Converter Coax Cable with F Female to IEC TV Male Connector

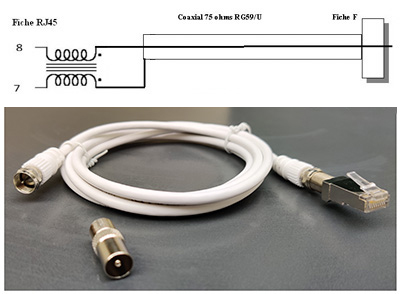

Cordon Télévision Balun Satellite, RJ45 / type F
SPECS:
| Part # |
FEV-BL1002 |
| Input/Output Interface | F (male) x 1，RJ45 x 1 |
| Support Bandwidth | 40MHz ~2.4GHz |
| 3dB Bandwidth | 40 MHz ~ 1 GHz |
| Insert Loss | < 3 dB @ 40 ~ 1 GHz |
| Return Loss | > 18 dB @ 40 ~ 1 GHz |
| Common-Mode Rejection Ratio (CMRR) | -20dB or higher @ 40 MHz ~ 1 GHz |
| CAT.5e/6 UTP Cable | 24AWG, Impedance：100Ω |
| Transmission Distance | Based on frequency or input video signal level, max. up to 100M |
| Temperature | Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95% |
| Dimensions mm | 14.2 x 15.6 x 2000 |

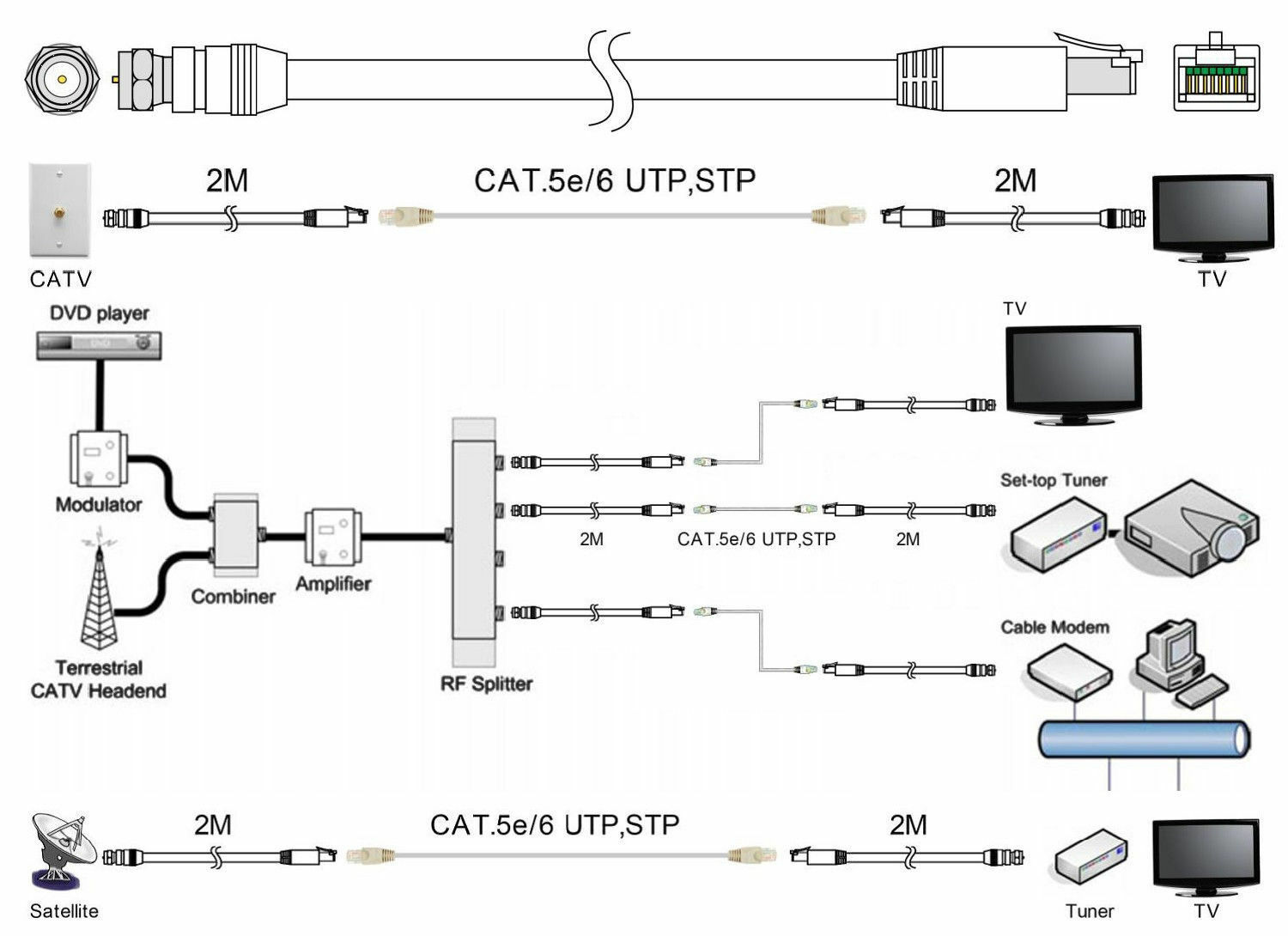

Specification instruction of 75ohm Coax Cable to Cat5 RJ45 Extender Balun coax cable
Contact Information:
Email: sales@fevelectronics.com C.C.: fevelectronics@gmail.com
TEL: +86 177 5158 5921 (Available for WhatsApp, WeChat)
Website: https://www.fevelectronics.com
Cordon Balun passif TV 9.52 mm mâle vers Ethernet RJ-45 mâle Erard 1.5 m Blanc

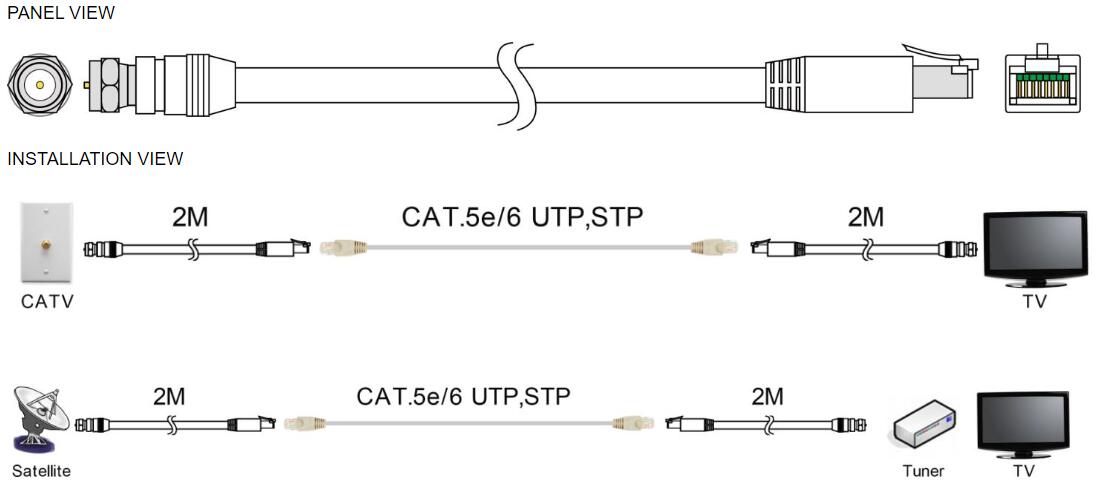

Specification instruction of 75ohm Coax Cable to Cat5 RJ45 Extender Balun coax cable

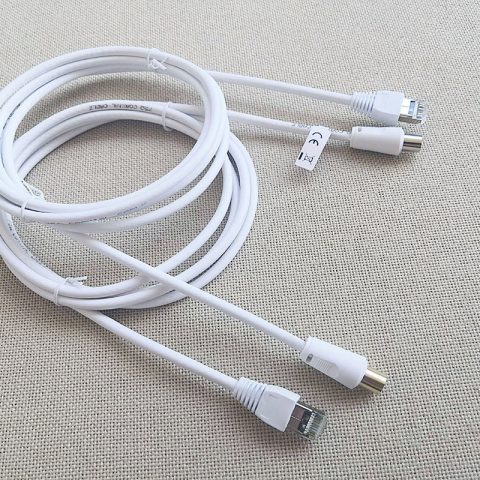

Balun TV Converter Cable PAL IEC 9.5 TV male to RJ45 ethernet male coax cable
