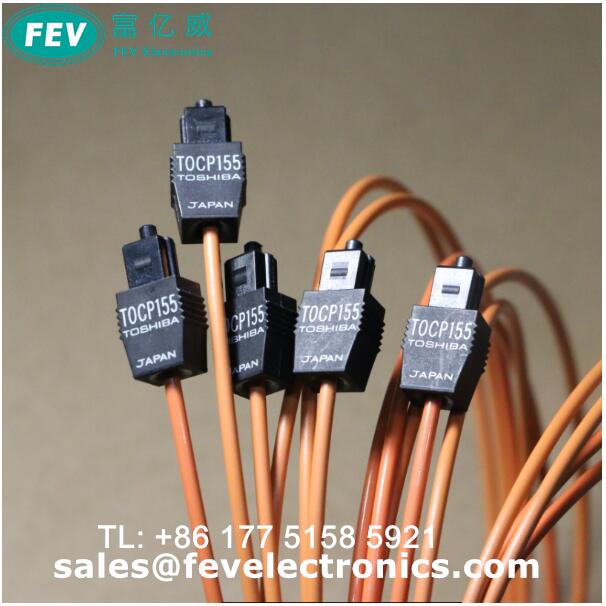

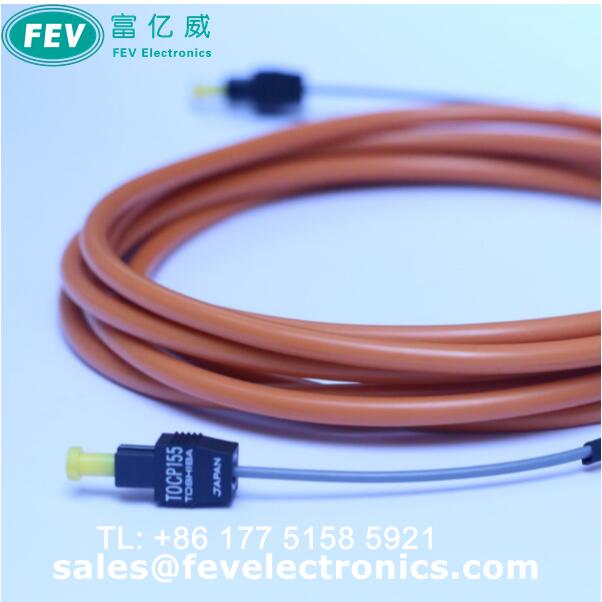

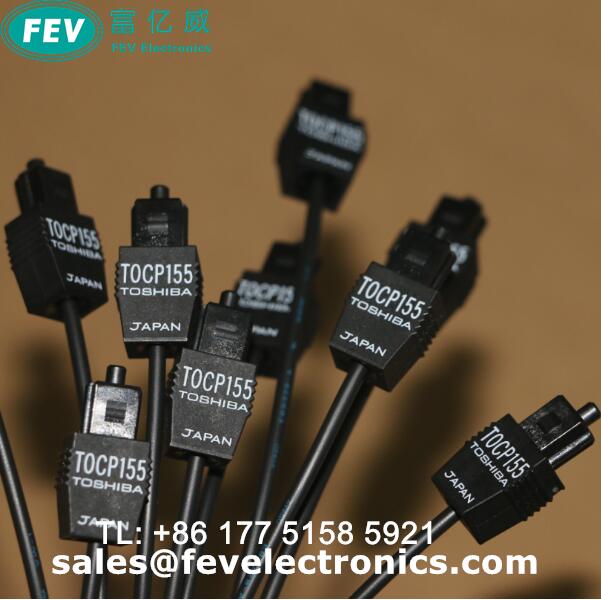

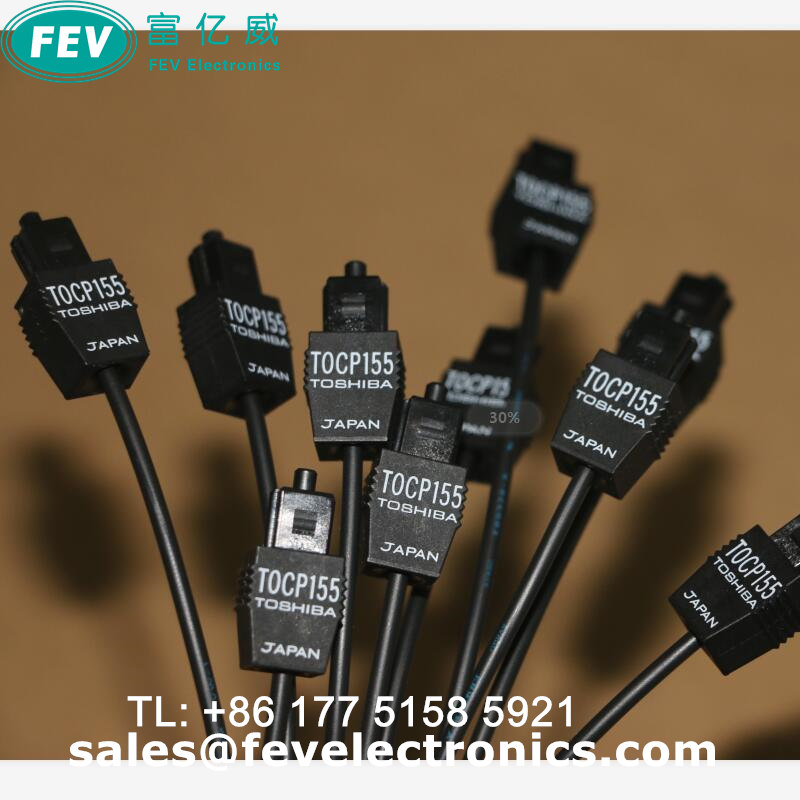

TOCP 155 TOSHIBA TOCP155 Optical Fiber Cable

TOCP 155 TOSHIBA TOCP155 Optical Fiber Cable

SKU: FEV-TOCP155 Category:
General Details

TOCP 155 TOSHIBA TOCP155 Optical Fiber Cable

Model Number: TOSHIBA TOCP155
Type: Fiber Optic Cable TOCP155 TOSHIBA, JIS F05, simplex type
Place of Origin: Japan
Brand Name: Toshiba
Number of Conductors: 1
Gender: Male
Attenuation: 160db/km
AFR: (980/1000um)
length: 1m~100m , Accept customization
Working temperature: -55~+85C
Application: industrial control
Model number: TOCP 155
cable diameter: 2.2*4.4mm

The TOCP155 jumper is a plastic optical fiber jumper manufactured by Japan’s Toshiba (TOSHIBA) connector and plastic optical cable. The TOCP155 optic fiber cable jumper is simplex communication. At the same time, information can only be transmitted in one direction.
TOCP200 jumper is a plastic optical fiber jumper manufactured by TOSHIBA Japan imported connectors and plastic optical cables. The difference between the two is that the communication direction is different. The TOCP200 jumper is duplex communication, which can send and receive data at both ends of the data communication system at the same time.

Performance specifications:
Interface type: TOCP 200/255 / F07 / 155/100
Connector material: Plastic sheath \ metal ferrule
Core material diameter: Φ1.0;
Core material: domestic optical fiber or imported Japanese optical fiber
Finished product diameter: Φ2.2; optional Φ2.2mm-10.0mm
Outer cover material: CPE, PE, PVC
Outer cover color: fog black, other colors can be customized
Attenuation: less than 180dB / km
Working temperature: -55 ℃-+ 85 ℃
Standard length: 1000mm, any size from 0-100m can be customized
Comply with standards: European ROHS certification
CE certification
Toshiba Standard

TOCP 155 TOSHIBA TOCP155 Optical Fiber Cable

TOCP 155 TOSHIBA TOCP155 Optical Fiber Cable



TOCP155 toshiba optical fiber cable

TOCP155 toshiba optical fiber cable



Toshiba TOCP155 Optical Fiber Cable

Toshiba TOCP155 Optical Fiber Cable

Changzhou FEV Electronics produces TOCP100, TOCP100X, TOCP150, TOCP151, TOCP 200, TOCP200Q, TOCP201Q, TOCP255, TOCP255P, TOCP255K, TOCP255PK, TOCP 200K, C08I 5, TOCP 172, JIS F05 JIS F07 Connector. Toshiba original optical fiber cable for replacement. We can produce the TOCP Optical Fiber cable from 0 to 100 Meters. TOCP Optical Fiber Cable for CNC controller. TOCP155 Toshiba, TOCP 200 Toshiba, TOCP 255 Toshiba, Toshiba Cable, Toshiba CNC, Toshiba CNC Controller, Elevator fiber optical cable, Server, Printer machine etc. Toshiba Optical Cable. Toshiba Wiring Devices.
