Cordon Télévision Balun, RJ45 / IEC 9,52 mm

A passive balun cord that links a TV's IEC 9.5 mm aerial socket to an RJ45 wall outlet — no power, no box, just the cable.

SKU: FEV-BL108 Categories: ,
General Details
RJ45-9.5 IEC Male TV converter Balun Cable

RJ45-9.5 IEC Male TV converter Balun Cable

A passive TV balun cord — one end plugs into the RJ45 wall outlet, the other into the TV’s IEC 9.5 mm aerial socket. It carries the terrestrial TV signal over the network cable in the wall, so the TV doesn’t need its own coax run back to the aerial point. No power, no settings, just plug it in at both ends.

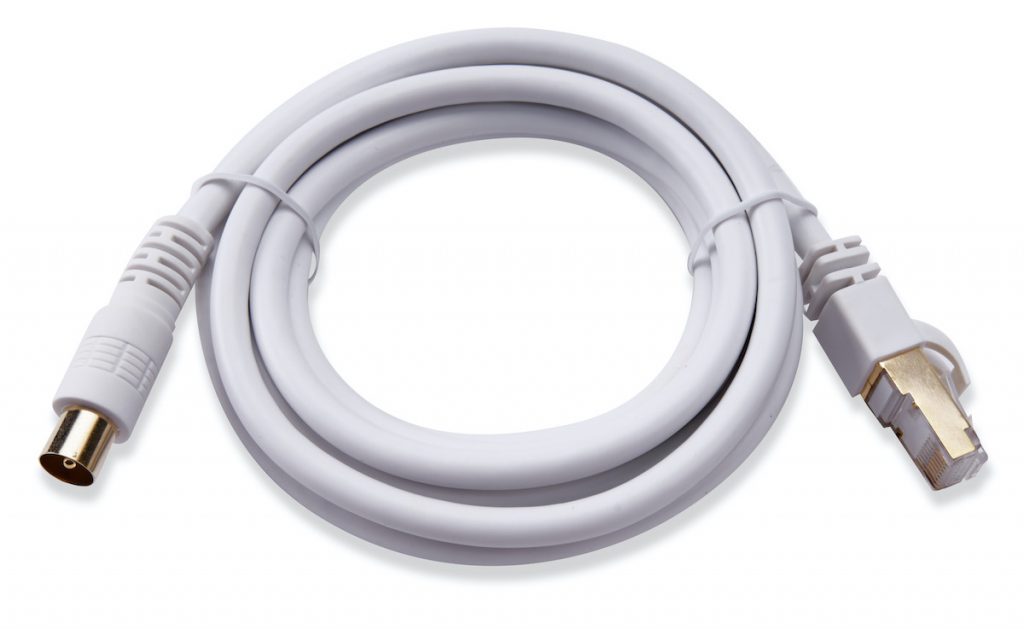

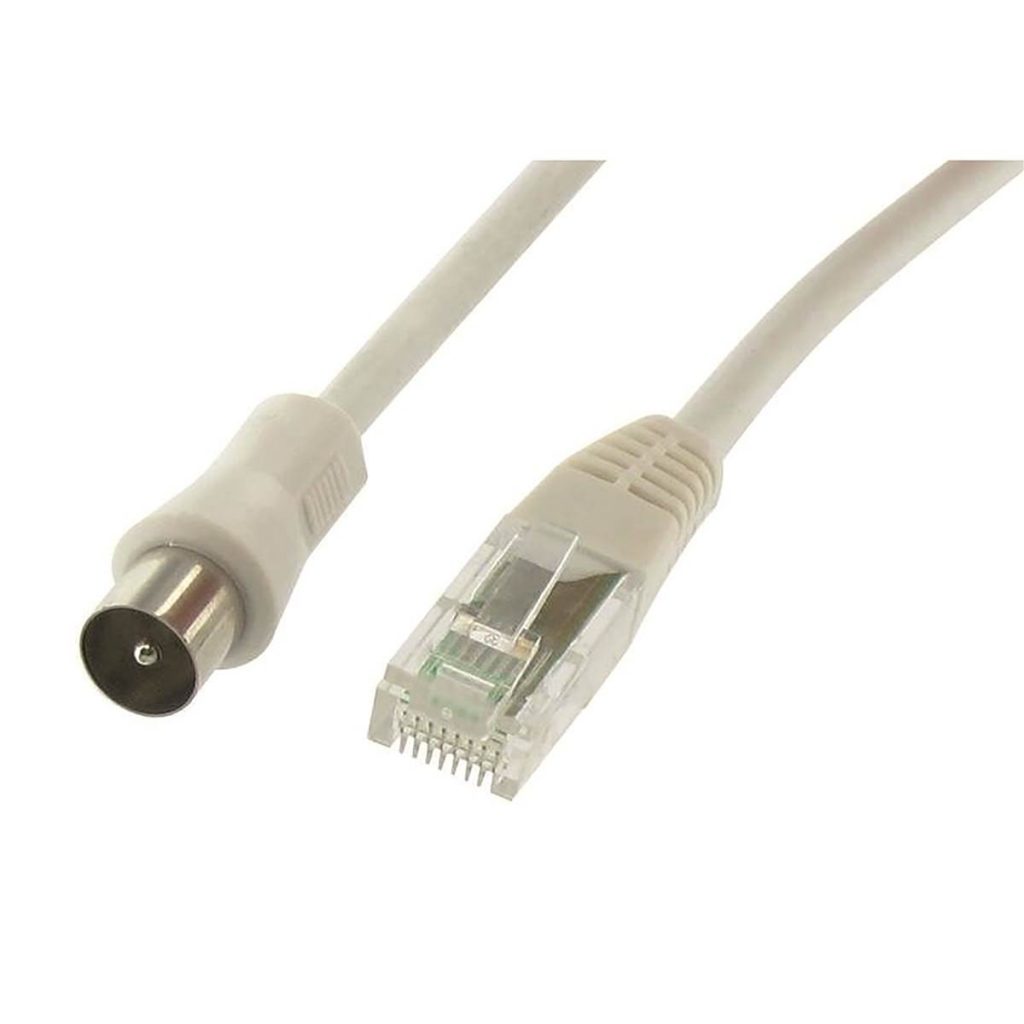

The featured photo shows the cord in black: a clear RJ45 male plug with metal shielding on one end, and a gold IEC 9.5 mm TV male plug — round barrel, gold tip, black sleeve — on the other. Most of the other gallery photos show the same cord in white. Same cord, two colours in the photos; check with us if the colour matters for your order.

Please read before ordering: the old description on this page was in French, and this rewrite is in English. The specs below are from that French text, kept as printed. The French text lists reference lengths of 1.5, 2, 3, 4 and 6 m (CAX-001-1.5M to CAX-001-6M) without saying which one this listing ships — so length is not stated, confirm before ordering. Two gallery images don’t belong to this cord: one is an F-type CATV extender photo, and one file is named “Balun-actif” (active) — this cord is passive, so ignore both.

Key facts

  • Product: television balun cord, RJ45 to IEC 9.52 mm
  • Model / SKU: FEV-BL108
  • Ends: RJ45 male + IEC 9.52 mm TV male
  • Cable: 75 ohm coaxial, RG59 and 3C2V type, shielded
  • Bandwidth: 5–862 MHz
  • Insertion loss: <1.5 dB at 690 MHz; max. attenuation in band 4.7 dB
  • Operating frequency: 50–865 MHz
  • DC passing: passes DC signals, 22 kHz, DiSEqC
  • Operating temperature: -10 to +70°C
  • Type: passive balun, no power needed
  • Length: not stated — confirm before ordering
  • Warranty: 1 year, per the old text
BALUN RJ45 VERS TV 9.52MM COAX CABLE

BALUN RJ45 VERS TV 9.52MM COAX CABLE

Good for

Homes wired with RJ45 wall outlets under the French building rules — the TV plugs into the wall socket with this cord instead of needing a separate aerial cable run to the set.

Related products

Balun TV converter cable, PAL to RJ45 — FEV-BL1002 · Balun TV converter cable, PAL IEC 9.5 TV male to RJ45 — FEV-BL1001 · Erard balun cord, IEC 9.52 mm male to RJ45 male — FEV-BL-1005

More TV and coax cables: BH Cables

Questions about this cable? Email sales@fevelectronics.com — that’s the fastest way to reach us.
