SMA905 – FC 1000um 500um Single Mode Optical Fiber Cable Assembly

SMA905–FC fiber cable assembly, 1000 um / 500 um — SMA905 to FC, POF 1 mm core.

SKU: SMA905 - FC Category:

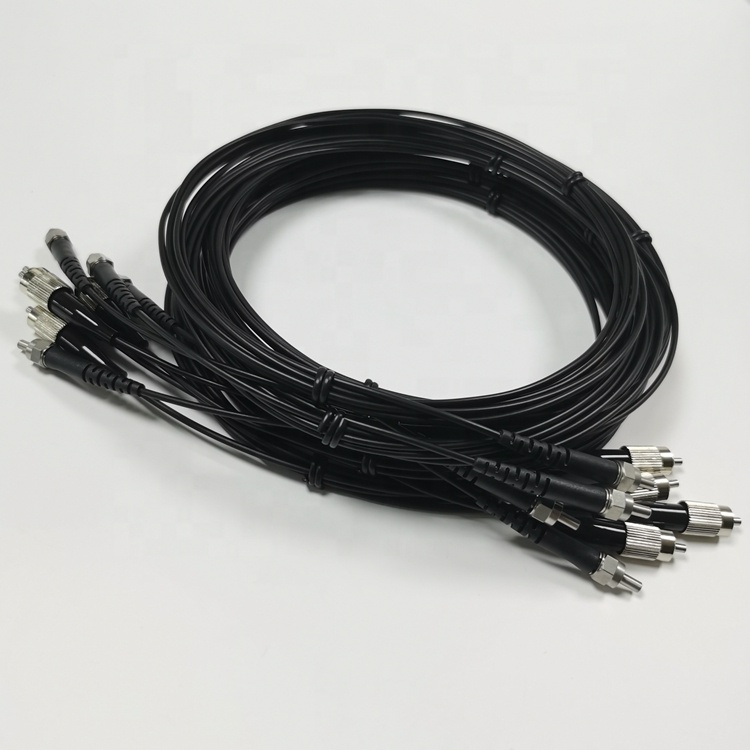

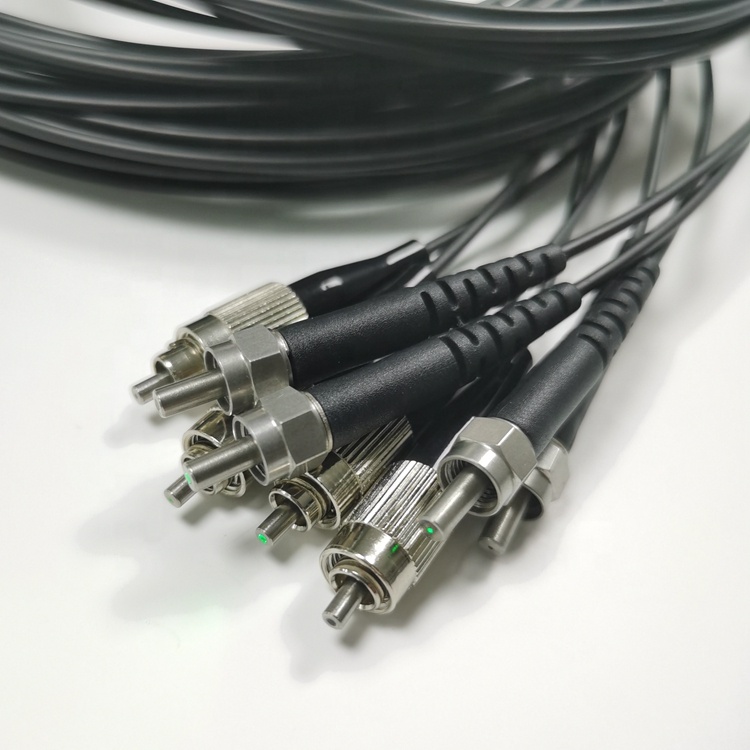

SMA905–FC fiber cable assembly — SMA905 on one end, FC on the other, 1000 um / 500 um in the title. The body states the transmission medium as POF (plastic optical fiber), 1 mm core, outer OD 2.2 mm black PE, wavelength 650 ± 15 nm, attenuation 0.3 dB/m, wire length 0.1 m to 40 m optional. The two photos show the assembly with its SMA905 and FC ends.

Please read before ordering: the title and the body do not agree. The title says “Single Mode”, but the body says the medium is POF (1 mm plastic fiber) — plastic optical fiber is not single-mode glass fiber, and the body never mentions single-mode anywhere else. The title also says “1000um 500um”, but the body only states POF 1 mm (1000 um) — no 500 um figure appears anywhere. And the supplier boilerplate pasted on the page is about HCS hard-plastic-clad quartz fiber (200/230 um) — a third, different fiber type that appears in neither the title nor the spec line. Go by the POF figures in the body (1 mm core, 650 nm, 0.3 dB/m) and confirm the fiber type, the core size, and the length before ordering — do not order this as a single-mode glass assembly.

Key facts

  • Interface: SMA905–FC
  • Medium (per body): POF, 1 mm core
  • Outer OD: 2.2 mm, black PE
  • Wavelength: 650 ± 15 nm
  • Attenuation: 0.3 dB/m (as stated)
  • Length: 0.1 m–40 m optional
  • SKU: SMA905 – FC

Good for

An SMA905-to-FC link over plastic fiber — check the fiber type first, because the title’s “Single Mode” does not match the body’s POF spec.
